Aperiodic monotile

Definition

An aperiodic monotile is a single closed topological disk in the plane whose congruent copies can tile the entire plane, but only in non-periodic arrangements. Unlike Penrose kite-and-dart sets or other multi-tile aperiodic systems, a monotile uses one shape — though reflected copies may be required depending on the tile's chirality.^[1][3]

The long-standing einstein problem asked whether such a shape exists. David Smith, Joseph Samuel Myers, Craig S. Kaplan, and Chaim Goodman-Strauss answered it in March 2023 with the Hat tile, followed months later by the strictly chiral Spectre tile.^[1]

Ordered without repeating

Aperiodic tilings are not random. They are highly structured: every tile sits in a deterministic hierarchy produced by substitution rules. Patches can be regenerated from a seed, scaled, and exported with stable tile IDs — making them reproducible geometric datasets, not noise.

That combination — global order, local variety, no translational repetition — is what makes monotile geometry interesting for graphics, materials, education, and algorithmic research.

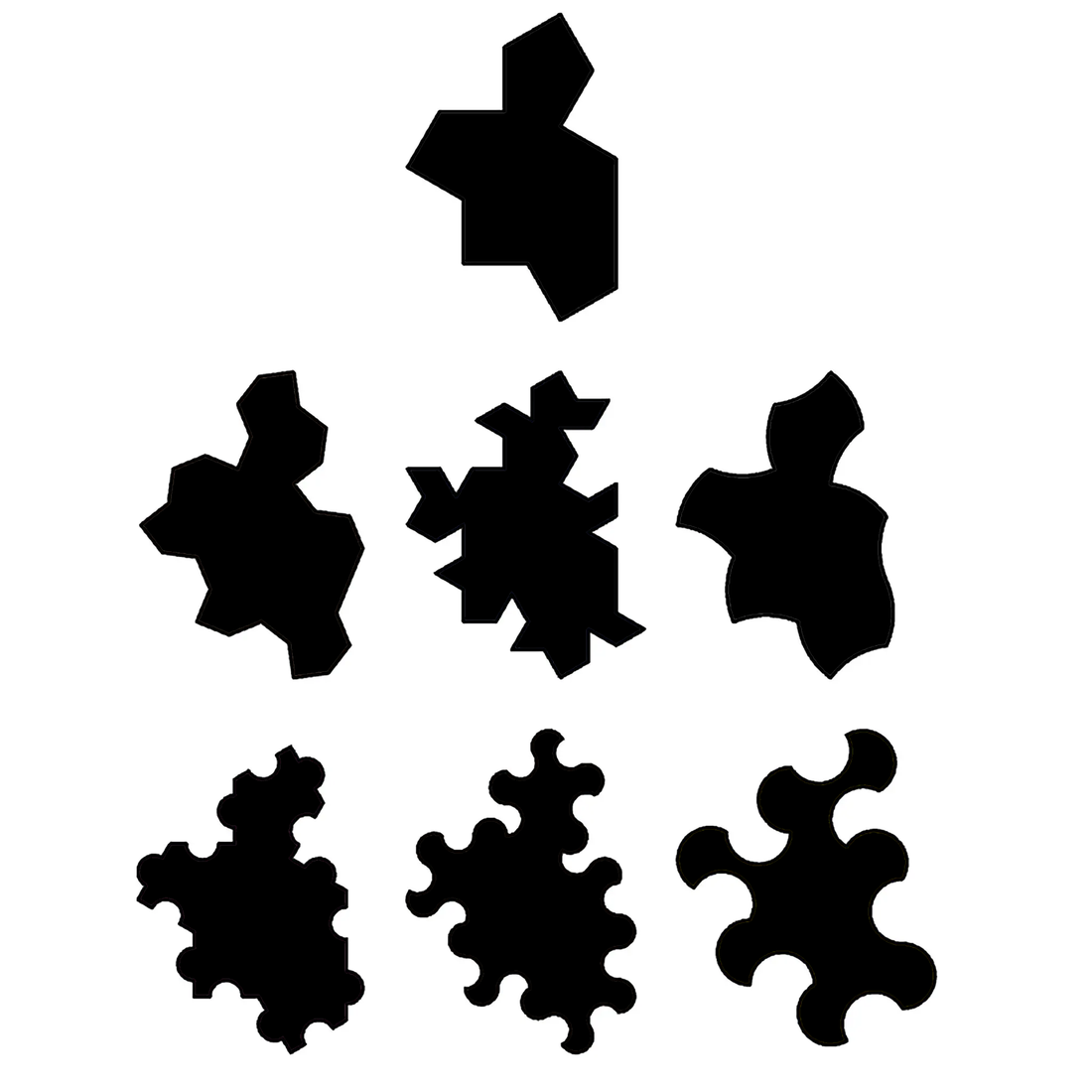

{FIG_TILING_ARRAY}

Weak vs strict chirality

The Hat tile is asymmetric: every tiling mixes unreflected and reflected copies. Some authors treat this as a two-shape system; standard tiling literature counts reflected congruent copies as the same tile.^[1]

The Spectre tile is a strictly chiral aperiodic monotile: it admits only homochiral non-periodic tilings, even when reflections are allowed. That distinction matters for physical fabrication where mirrored parts are costly or impossible.^[1][6]

See also

Spectre tile, Hat tile, Substitution tiling
