Robotics and mobility
Aperiodic surfaces and sensor layouts as localization substrates, coverage geometry, and sampling arrays.
The localization argument
Periodic floors are hostile to visual localization: every cell looks like every other cell, so a downward camera learns almost nothing about where it is. Random textures are locally distinctive but cannot be regenerated, queried, or shared as a ground-truth map across labs. An aperiodic monotile surface sits in the useful middle: every sufficiently large neighborhood is unique,[2] yet the whole field is deterministic — a robot that reads its local tile configuration can, in principle, recover absolute pose from a lookup table built from the same seed.
This is not only a 2023 idea. Autonomous-robot localization from aperiodic floor patterns was already proposed and implemented with Penrose-like tilings in the 1990s: scan a local patch, decode position from configuration, and improve precision as the scanned neighborhood grows — with better robustness to missed line counts than a rectangular grid.[72] Monotiles sharpen the same program: one prototile, no matching rules to paint, stable IDs and affines for every tile, and regenerable patches for any arena size from generators such as aperiodicgenerator.com.
Sensors, arrays, and sampling
Robotics is not only cameras on floors. Where you place sensors — lidar stations, microphones, ultrasonic beacons, pressure taxels, RF nodes — is a spatial sampling problem. Periodic lattices alias; purely random deployments are hard to certify. Aperiodic monotile centroids and adjacency graphs give ordered, non-repeating sample layouts with documented spectral advantages over regular grids for wavefield sampling and beamforming.[37] That literature lives on Signal processing and imaging and Aliasing; robotics inherits it for:
- Multi-robot and WSN coverage — place nodes at tile centroids so coverage has no periodic blind corridors and clone/intrusion routes are harder to predict from local structure.
- Active sensing footprints — raster or spiral coverage paths that follow substitution hierarchy instead of lawnmower rows, reducing resonant vibration on the vehicle and patterned wear on the floor.
- Tactile and force arrays — taxel layouts without a single lattice frequency, so slip and contact signatures do not lock to the sensor grid.
SLAM, planning, and shared benchmarks

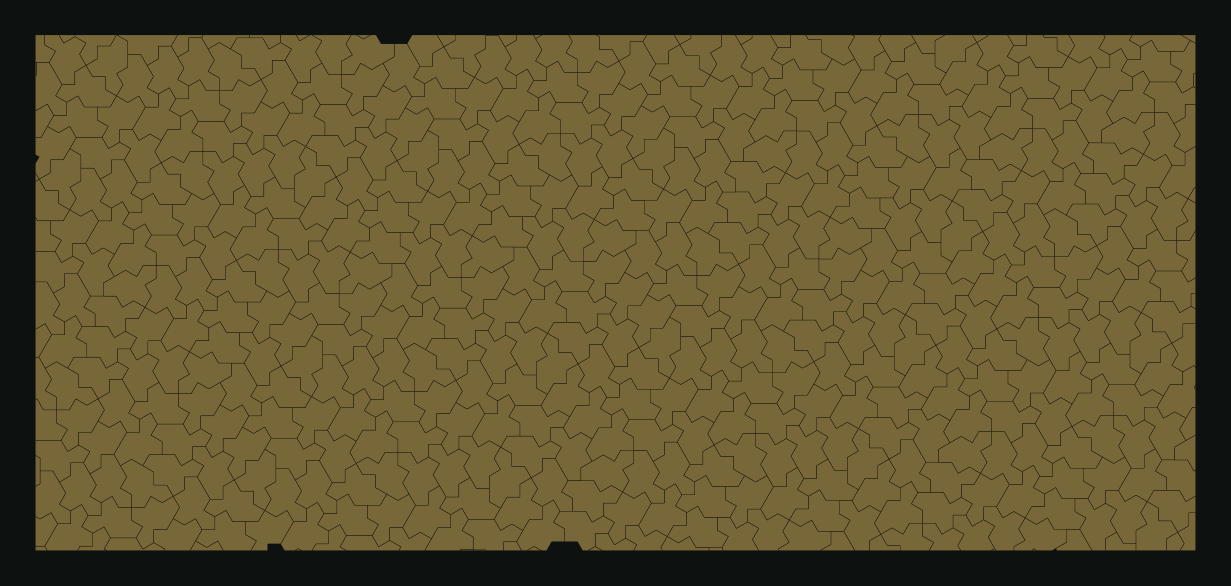

Because every patch regenerates exactly from a seed, an aperiodic arena is a shared benchmark terrain: two labs can print or project the same floor, publish trajectories against the same tile IDs, and compare SLAM or planning papers without arguing about texture randomness. Algorithmic primitives already exist for recovering finite tessellation structure from observed fragments[25] and for searching tiling space at scale.[17] Hierarchical tile counts (Fibonacci / Lucas signatures) give multi-scale statistical fingerprints a localizer can use when vision is partial.[12]
Open problems that serious roboticists will recognize as load-bearing:
- How large a neighborhood must a downward camera see to uniquely identify pose under occlusion, dirt, and lighting change?
- Can substitution hierarchy be used as a coarse-to-fine localization cascade (cluster → tile → sub-vertex)?
- What happens to visual odometry drift on aperiodic vs checkerboard floors at the same spatial frequency content?
- How should motion planners exploit unique corridors without reintroducing periodic cost maps?
Mechanics and contact
- Grasping and traction textures with no periodic slip planes — related to aperiodic lattice mechanics in Materials science and fluids
- Tire tread, road surface, and rail-bed studies where periodic patterns excite resonance
- Soft-robot skin layouts and conformal sensor meshes derived from clipped monotile patches
- Deployable / folding mobility structures; flat-foldability synthesis points the way[26][51]
See also
Signal processing and imaging, Aliasing, Algorithms and machine learning
