Four-dimensional lift

Nan Ma’s coherent ℝ⁴ edge lift, and how it differs from CAP/CASPr cut-and-project theory.

The observation

The whole Hat or Spectre tiling can be treated as a single static object in four-dimensional space. Arnaud Chéritat credits the initial idea to Nan Ma: not merely lifting one Tile(a,b) outline, but assigning coherent ℝ⁴ coordinates to every vertex in an entire simply connected tiling.[54] Ma’s earliest securely dated public artifact is the aperiodic-monotile-4d repository created 9 June 2023.

Real Tile(1,1) edge vectors lifted into two coordinate planes in four dimensions, then projected as Hat, Tile(1,1), and Turtle

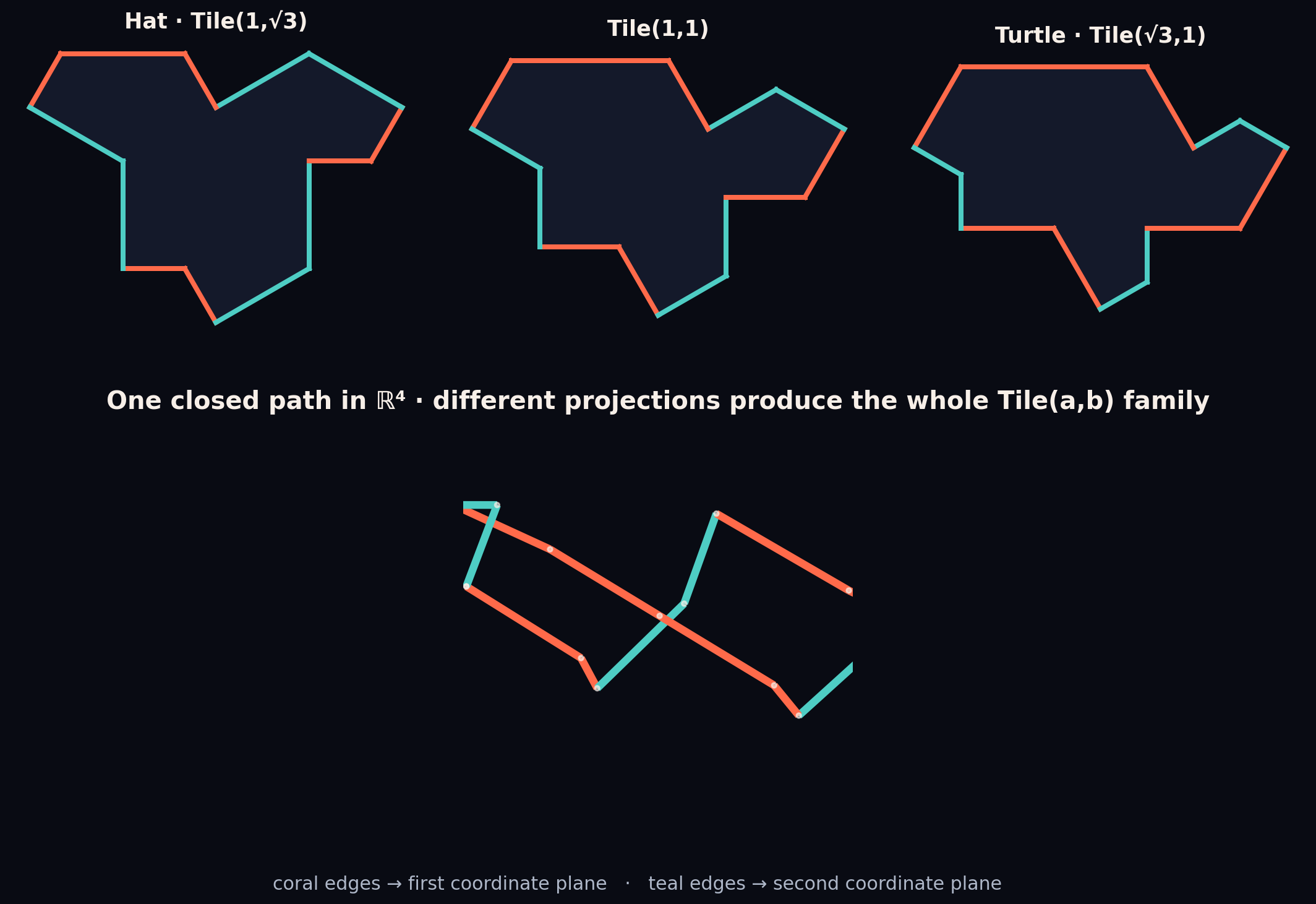

One path, a family of projections. Coral and teal edges lift into separate coordinate planes in ℝ⁴. The Hat, Tile(1,1), and Turtle are different linear projections of the same closed lifted path. Original diagram generated from this site's canonical Tile(1,1) geometry, following Chéritat and Ma’s construction.

How the lift works

Write four-space as ℝ⁴ = ℝ²red × ℝ²green. Tile(a,b) has two direction classes: edges at multiples of 60° and edges at odd multiples of 30°. A directed edge (x,y) in the first class lifts to (x,y,0,0); one in the second lifts to (0,0,x,y). Opposite edges cancel by class, so the fourteen lifted vectors close into one polygonal path in ℝ⁴.

The ordinary two-dimensional tile is recovered by La,b(u,v) = a u + b v. Changing (a,b) changes the projection, not the lifted object: Hat, Tile(1,1), Turtle, Chevron, and Comet are views of the same four-dimensional edge path. Adjacent tiles give their shared edge the same lifted vector; integrating these vectors gives path-independent vertex coordinates across any simply connected patch.[54]

For homochiral Tile(1,1)/Spectre tilings, tiles rotated by an odd multiple of 30° swap the two edge classes. Animations vary an ℝ⁴→ℝ³ projection while the lifted surface stays still. This is why a complicated coordinated deformation can be understood as moving a camera around one higher-dimensional object.

What it proves — and what it does not

Ma’s construction is best understood as a discrete height function or stepped surface. The edge lift is canonical, but filling each lifted tile interior with a surface is not unique; rendered solids include a visualization choice. The lift does not by itself prove that Hat or Spectre control points form a regular model set.

That stronger result comes from distinct work. Baake, Gähler, and Sadun construct the self-similar CAP representative of the Hat family and a 4:2 cut-and-project scheme with two-dimensional internal space.[31] Baake, Gähler, Mazáč, and Sadun do the analogous job for Spectre via CASPr and five Rauzy-fractal windows, proving pure-point spectrum and diffraction.[32] These frameworks use algebraic return modules, Galois conjugation, and acceptance windows—not Ma’s edge coloring.

Six dimensions and diffraction

Socolar’s independent Golden Key construction embeds a related Hat metatiling in a six-dimensional hypercubic lattice and projects selected points to the plane, establishing golden-mean quasiperiodicity and a phason degree of freedom.[6] Exact diffraction calculations later use CAP and CASPr reprojections plus renormalization cocycles to compute Fourier–Bohr amplitudes through fractal windows.[35][36]

These are complementary views: Ma’s lift explains the moving Tile(a,b) family geometrically; CAP/CASPr explain long-range order dynamically; the six-dimensional Golden Key construction exposes a larger quasiperiodic embedding.
